HIE 800™ Installation |
|
|
HIE 800™ | HIE 800™ Expansion Kit |
||
| HIE 800™ Installation Procedures | ||
|

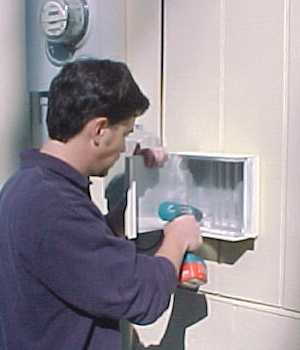

Step 1: Mount the HIE to a flat surface on the side of a house using 1/4" wood screws, Tap cons or lag bolts. |
|
|
|
|
||
|
|

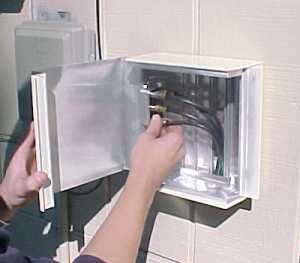

Step 2: Route the wires in to the enclosure through the knockouts. Install devices (splitters, ground blocks, etc.) directly into the screw bosses located on the back and sides of the HIE, using #10x1/2" metal screws. This will insure a proper ground for all devices that are attached to the HIE if the HIE is grounded properly. |
|
|

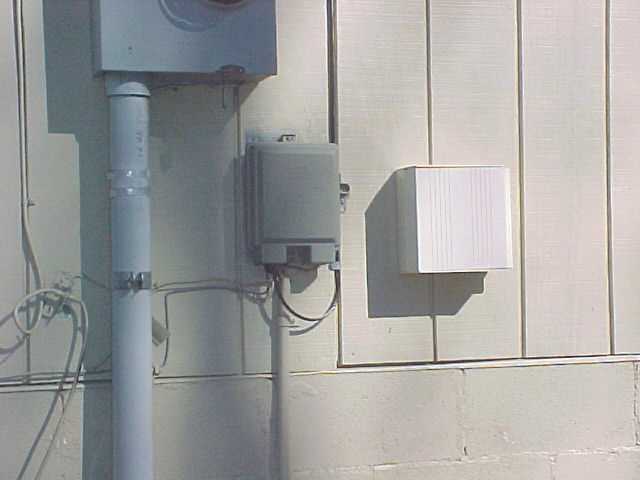

Step 3: Close the lid and secure with a security screw, terminator or Budco tag. |
|
|
|
