HIE 800™  Expansion Kit Installation

HIE 800™  |  HIE 800™ Expansion Kit

Home

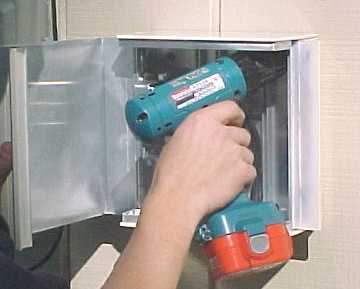

Step 1: Remove the top of the HIE by removing the #10 screws located on the sides and back.

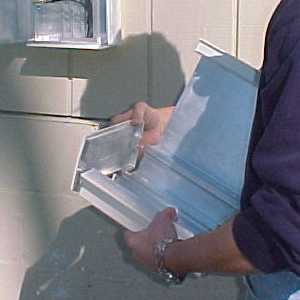

Step 2:  Place the top on the expansion kit using (4) #10 screws provided.

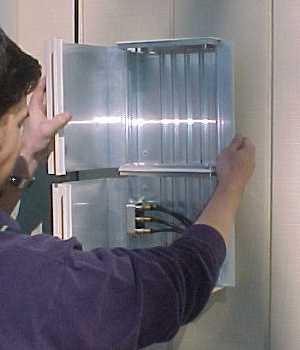

Step 3:  Place the expansion kit on top of the HIE where the top was removed and reinstall the
#10 screws that were taken out in
Step 1.

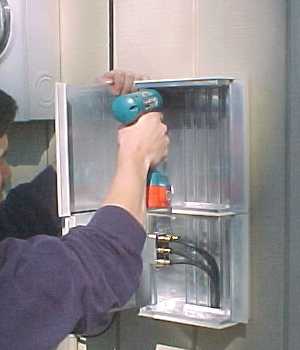

Step 4:  Fasten the expansion kit to the wall.

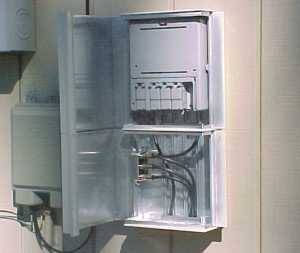

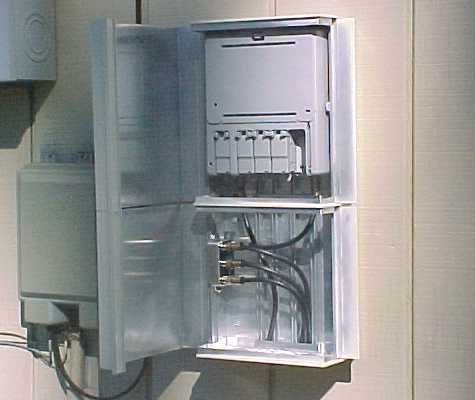

Step 5:  Install and wire the additional equipment.

Step 6:  Close the lid and secure.
