| The Boss™ with an Open Back | ||||
|
|
||||
 |
Model Number |
Dimensions H-W-D | Standard Knockouts | |
|
|
||||
| B-121209-OB-PG* | 12"x12"x9" | 2-2" K/O Top&Bottom | ||
| B-181209-OB-PG* | l8"x12"x9" | 2-2" K/O Top&Bottom | ||
| B-181809-OB-PG* | l8"x18"x9" | 3-2" K/O Top&Bottom | ||
| B-241809-OB-PG* | 24"x18"x9" | 3-2" K/O Top&Bottom | ||
| B-242409-OB-PG* | 24"x24"x9" | 3-2" K/O Top&Bottom | ||
| B-362409-OB-PG* | 36"x24"x9" | 3-2" K/O Top&Bottom | ||
| B-363609-OB-PG* | 36"x36"x9" | 3-2" K/O Top&Bottom | ||
| *For tan color,
replace (PG) in model number with (PT). |
||||

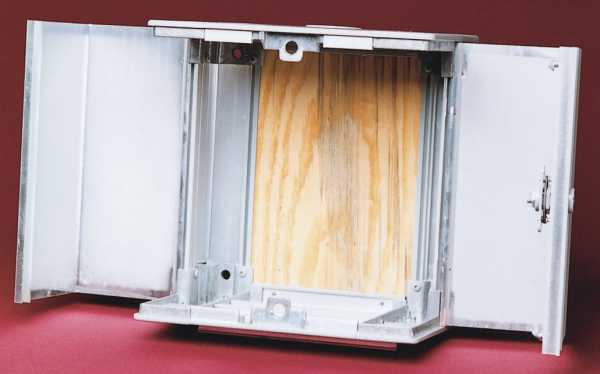

| The Plywood Mounting Surface is provided with the Open Back design. The Open Back design is ideal for pre-wire applications. | ||||
|
|
| The Boss™ with a Solid Aluminum Back | ||||
 |
||||
| Model Number |
Dimensions H-W-D | Standard Knockouts | ||
| B-121209-SB-PG* | 12"x12"x9" | 2-2" K/O Top&Bottom | ||
| B-181209-SB-PG* | l8"x12"x9" | 2-2" K/O Top&Bottom | ||
| B-181809-SB-PG* | l8"x18"x9" | 3-2" K/O Top&Bottom | ||
| B-241809-SB-PG* | 24"x18"x9" | 3-2" K/O Top&Bottom | ||
| B-242409-SB-PG* | 24"x24"x9" | 3-2" K/O Top&Bottom | ||
| B-362409-SB-PG* | 36"x24"x9" | 3-2" K/O Top&Bottom | ||
| B-363609-SB-PG* | 36"x36"x9" | 3-2" K/O Top&Bottom | ||
| *For tan color,
replace (PG) in model number with (PT). |
||||

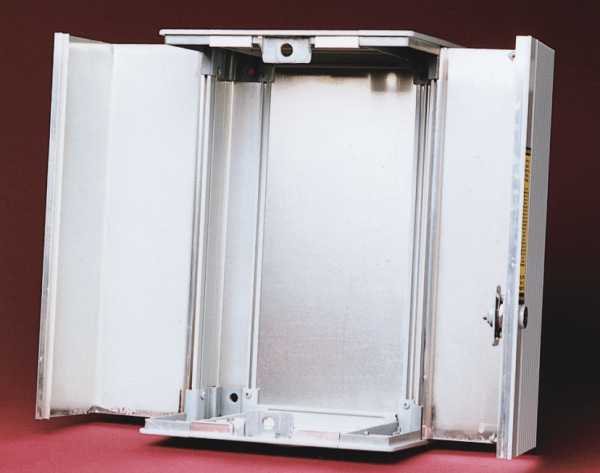

| The Solid Back box provides an ideal mounting surface for both Taps and Splitters as well as excellent grounding properties. | ||||
|
|
 |

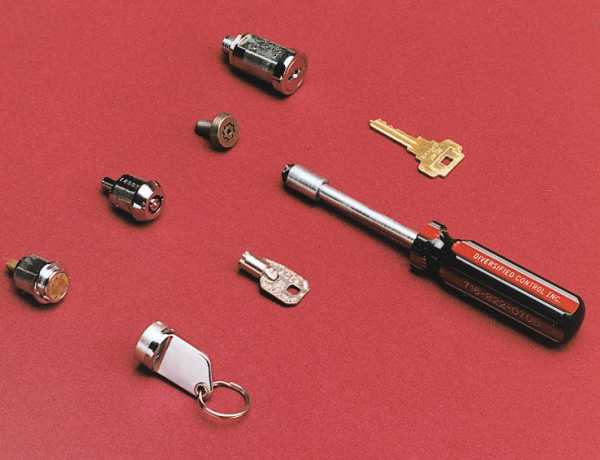

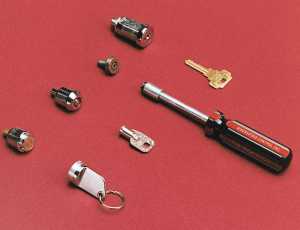

Standard Locking Options | ||
| Part Number | Description | ||
| NX-I-XX | Novus Lock | ||
| NX-KEY-XX | Novus Key | ||
| Other Locking Options | |||
| LCN-XXX | Diversified Security Screw | ||
| SHK-XXX | Diversified Security Tool | ||
| ACEII-XXX | Cam Lock | ||
| ACEII-KEY-XXX | Cam Lock Key | ||
| VLKA-L-XXX | Van Lock | ||
| VLKA-K-XXX | Van Lock Key | ||
