The Boss™ Expansion Kit
Space for tomorrow's needs!

	Model Number	Description	Applicable Boss™ size
	EK-121209-SB-PG	12" Extension	All 12" wide enclosures
	EK-181209-SB-PG	18" Extension	All 12" wide enclosures
	EK-241209-SB-PG	24" Extension	All 12" wide enclosures
	EK-121809-SB-PG	12" Extension	All 18" wide enclosures
	EK-181809-SB-PG	18" Extension	All 18" wide enclosures
	EK-241809-SB-PG	24" Extension	All 18" wide enclosures
	EK-122409-SB-PG	12" Extension	All 24" wide enclosures
	EK-182409-SB-PG	18" Extension	All 24" wide enclosures
	EK-242409-SB-PG	24" Extension	All 24" wide enclosures

	Note: For Open Back with plywood versions replace (SB) in model number with (OB). For Tan color replace (PG) in model number with (PT).
Expansion kits come with all necessary hardware and are available in Gray or Tan color.

	TAP MOUNTING BRACKETS

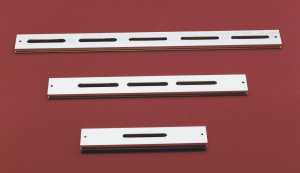

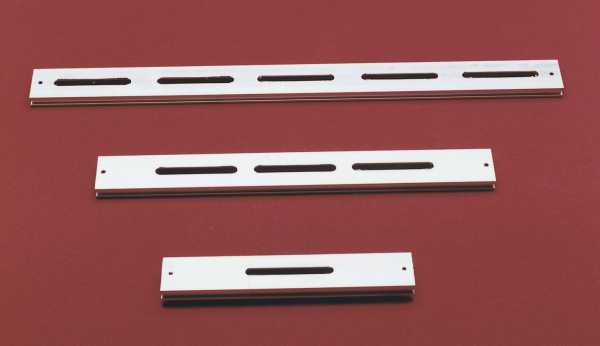

	Aluminum, adjustable, tap mounting brackets for all types of taps
	Model Number	Surface Mounting Area
	TB-112	All 12" Wide Boxes
	TB-318	All 18" Wide Boxes
	TB-524	All 24" Wide Boxes
	TB-736	All 36" Wide Boxes


MOUNTING TEMPLATES

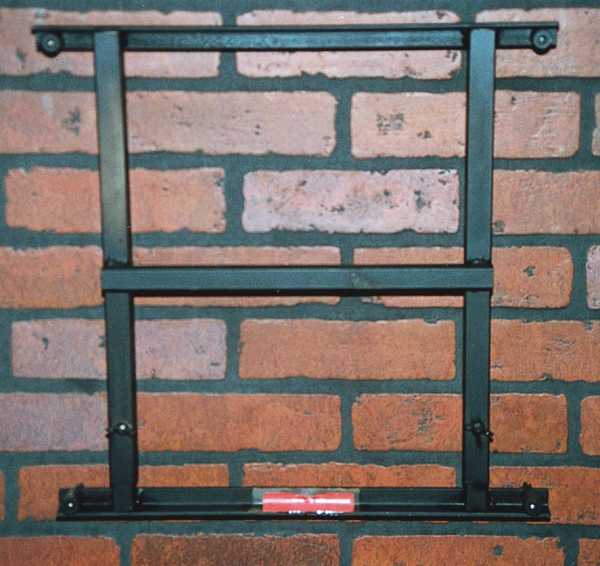

The easy-to-use mounting template reduces mounting time while assuring the box is installed level and square.
Part Number	Description
TMP-1212	Fits 12 x 12 Box Only
TMP-1812	For all 12" Wide Boxes
TMP-2418	For all 18" Wide Boxes
TMP-3624	For all 24" Wide Boxes
TMP-3636	For all 36" Wide Boxes

D-MARK PLATE

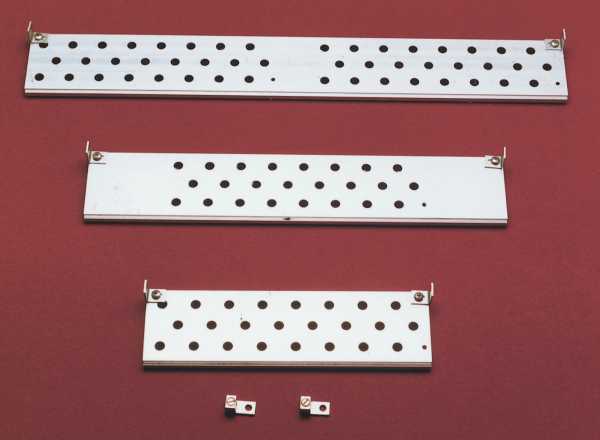

Aluminum F-81 connector plate with raised ridges to secure F-81 nut (F-81s not included)
Part Number	Box Width	Capacity
DM-2412	All 12" Wide Boxes	24
DM-2418	All 18" Wide Boxes	24
DM-4824	All 24" Wide Boxes	48
DM-7236	All 36" Wide Boxes	72

GROUND LUG
Ground Lug can be installed on mounting backs, boxes or d-mark plate
Part Number	Description
GL-DM	Ground Lug Mounted on D-Mark Plate
GL-HB	Ground Lug Mounted on Mounting Back
GL-BB	Ground Lug Mounted on Bottom of Boss Box
GL-TB	Ground Lug Mounted to Tap Bracket

KNOCKOUT LOCATION
12" W BOX	18" W BOX	24" W BOX		All Knockouts are 2" (accept a 2" conduit coupler) Knockout can not be removed from outside of box. (-1 = holes close together) (-2 = holes farther apart)
B-CT	B-CT	B-CT
B-L0	B-L00-1	B-L0C00
B-0R	B-00R-1	B-0LC00
B-LR	B-L0R-1	B-L0000
	B-LCR-1	B-0L000
	B-L00-2	B-L0C0R
	B-00R-2	B-00CRO
	B-L0R-2	B-0000R
	B-LCR-2	B-000R0
	(up to 3 holes)	B-LLC00		B (BOTTOM)	T (TOP)
		B-LL000

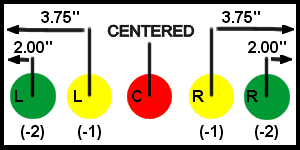

		B-00CRR		*-1 = 3.75" IN FROM OUTER EDGE
		B-000RR		*-2 = 2.00" IN FROM OUTER EDGE
		B-L000R
		B-LLCRR	(5 KNOCKOUTS)
		(up to 5 holes)
When knockouts are required for top entry: Replace the "B" with "T" Example: "T-0C0" would describe a box with a single top entry located in the center
When Placing an order for customized enclosures, Order the product with the Part Number. Then in the description line, include the codes for the desired knockout configuration. Example Description Line: The Boss with an Open back 18"x12"x9" B-LR,T-C This would order a box with 2 knockouts in the bottom and one on the top, centered.
